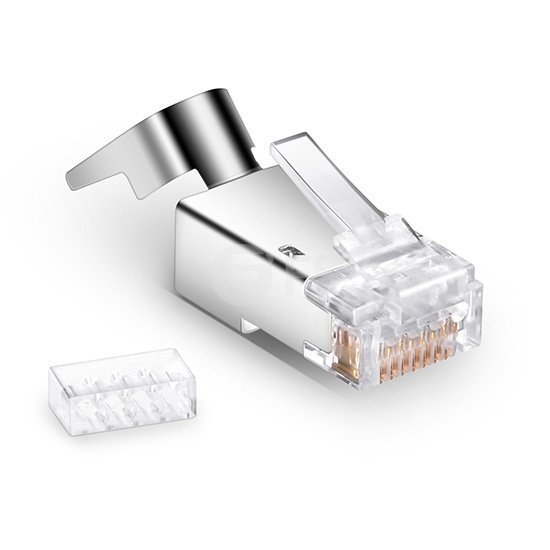

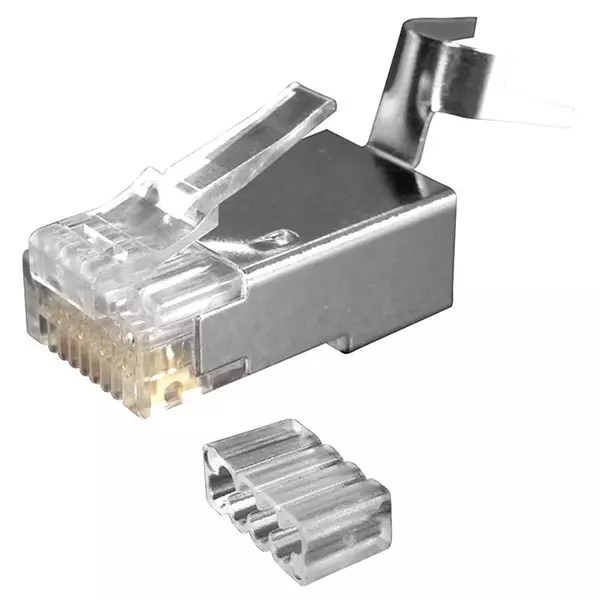

Cat6a RJ45 Shielded (STP) Modular Plugs with Loading Bar for Solid Cable
Cat t6a RJ45 modular plug is perfect for terminating cat6a solid cables. These modular plugs are manufactured from high-impact clear polycarbonate to withstand everyday wear and tear, and the contacts are 50 micron gold for optimum signal transmission. In addition, a two-piece design with a loading bar ensures easy and accurate assembly.
Cat6a RJ 45 connector Specifications
| Product Type | Modular Plug | Connector | RJ45 Male |
| Cable Type | Cat6a STP | Data Rate Support | 10GBase-T |
| Compatibility | Solid Cables | Package | 50pcs/pack |
| Wire Gauge Supported | 23AWG | Wiring Scheme | T568A & T568B |
| Loading Bar | Yes | Material | Polycarbonate |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) | Approvals | RoHS Compliant |
The modular plug is compatible with 3 load bars (AKA insert) in 3 different ODs of insulations: 1.2 mm, 1.5 mm, and 1.6 mm.
Each of the inserts is made for a wide range of wire insulation diameters. If you have trouble finding connectors for a large OD cable, this is the best solution that allows cables in various sizes to fit into the modular plugs.
| OD of Load Bar | Suitable OD of Wire Insulation |
| 1.2 mm | 1.05 mm ~ 1.15 mm |
| 1.5 mm | 1.35 mm ~ 1.45 mm |
| 1.6 mm | 1.45 mm ~ 1.55 mm |
Features
The gold plating on each of the contact blades is inspected with the X-Ray machine beforehand, and its thickness can be customized from 3 microns to 50 microns. The staggered position of the wires (4 up 4 down) is a user-friendly and efficient design for quick assembly.
● RoHS compliant.
● Follow FCC Part 68 standard.
● Passed the reliability test that meets the mechanical, electrical, and environmental standards based on IEC 60603-7.
