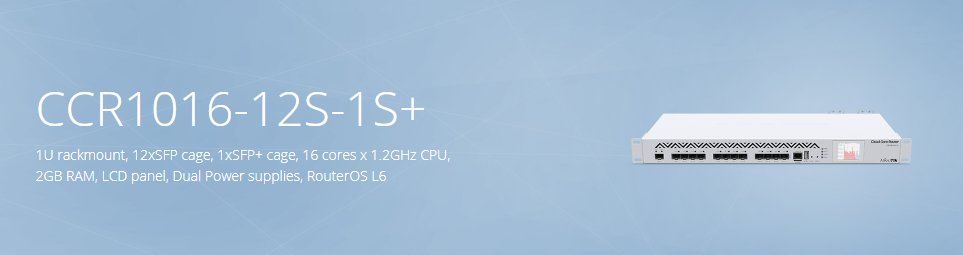

CCR1016-12S-1S+ – MikroTik Cloud Core Router 1U Rackmount, 12xSFP Cage

The CCR1016-12S-1S+ MikroTik Cloud Core Router is an industrial grade router with a cutting edge 16 core Tilera CPU.

The CCR1016-12S-1S+ has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.

Specifications

• Product code     CCR1016-12S-1S+
• Architecture       TILE
• CPU       TLR4-01680
• CPU core count 16
• CPU nominal frequency 1.2 GHz
• Dimensions        443 x 197 x 44 mm
• RouterOS license              6
• Operating System            RouterOS
• Size of RAM        2 GB
• Storage size        128 MB
• Storage type      NAND
• MTBF    Approximately 200’000 hours at 25C
• Tested ambient temperature     -20°C to 60°C
• IPsec hardware acceleration        Yes

Powering

• Number of AC inputs      2
• AC input range  100-240
• Max power consumption              47.5 W
• Max power consumption without attachments   34 W
• Cooling type       2 fans

Fiber

• SFP DDMI            Yes
• SFP ports             12
• SFP+ ports           1

Peripherals

• Memory card type           microSD
• Memory Cards  1
• Serial console port           RJ45
• Number of USB ports      1
• USB Power Reset             Yes
• USB slot type     USB type A
• Max USB current (A)       1
• CPU temperature monitor           Yes
• PCB temperature monitor            Yes
• Mode button     Yes
• Beeper Yes
