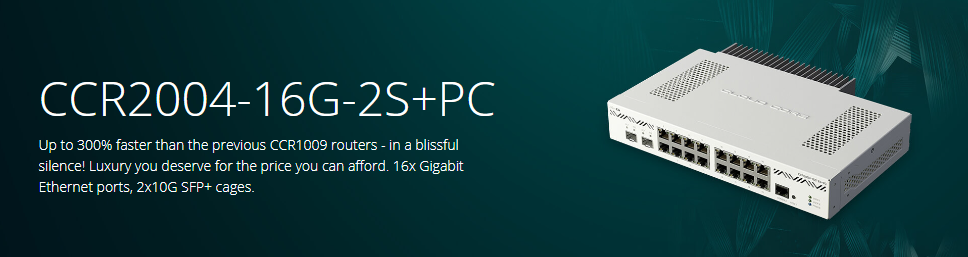

CCR2004-16G-2S+PC – MikroTik Ethernet Router 16x Gigabit 2x10G SFP+

The MikroTik CCR2004-16G-2S+ Gigabit Router comes with18 wired ports, including 16 Gigabit Ethernet ports and two(2) 10G SFP+ cages.

It also has a full-size USB and RJ-45 console port on the front panel, thus ease in communication and configuration. Equally important it is rack mountable, thus ease in installation.

Specifications

• Product code     CCR2004-16G-2S+PC
• Architecture       ARM 64bit
• CPU       AL32400
• CPU core count 4
• CPU nominal frequency 1200 MHz
• Switch chip model           88E6191
• Dimensions        272 x 195 x 44 mm
• RouterOS license              6
• Operating System            RouterOS v7
• Size of RAM        4 GB
• Storage size        128 MB
• Storage type      NAND
• MTBF    Approximately 200’000 hours at 25C
• Tested ambient temperature     -20°C to 60°C
• IPsec hardware acceleration        Yes

Powering

• Number of DC inputs      2 (DC jack, 2-pin terminal)
• DC jack input Voltage     36-57 V
• 2-pin terminal input Voltage       36-57 V
• Max power consumption              36 W
• Max power consumption without attachments   30 W
• Cooling type       Passive

Ethernet

• 10/100/1000 Ethernet ports       16
• Fiber
• Details
• SFP+ ports           2

Peripherals

• Serial console port           RJ45
• CPU temperature monitor           Yes
• PCB temperature monitor            Yes
• Voltage Monitor               Yes
