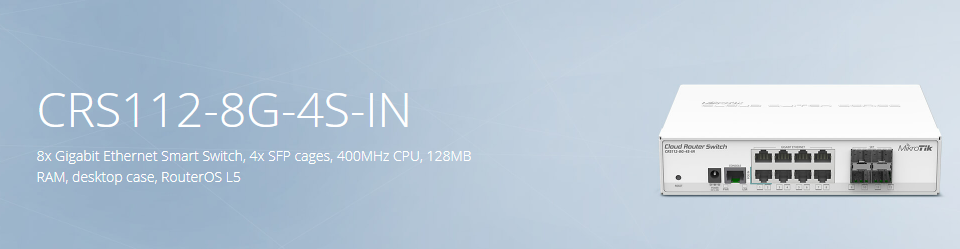

CRS112-8G-4S-IN – MikroTik 8x Gigabit Ethernet Smart Switch 4x SFP cages 400MHz CPU

Specifications

• Product code      CRS112-8G-4S-IN
• Architecture       MIPSBE
• CPU       QCA8511
• CPU core count 1
• CPU nominal frequency 400 MHz
• Switch chip model            QCA8511-AL1C
• Dimensions         200x143x44mm
• RouterOS license               5
• Operating System            RouterOS
• Size of RAM        128 MB
• Storage size         16 MB
• Storage type       FLASH
• MTBF    Approximately 200’000 hours at 25C
• Tested ambient temperature       -40°C to 70°C

Powering

• Number of DC inputs      2 (PoE-IN, DC jack)
• DC jack input Voltage      10-57 V
• Max power consumption              10 W
• Cooling type       Passive
• PoE in    Passive PoE
• PoE in input Voltage        10-57 V
• Ethernet: 10/100/1000 Ethernet ports       8
• Fiber : SFP ports             4

Peripherals

• Serial console port           RJ45
• Current Monitor               Yes
• PCB temperature monitor             Yes
• Voltage Monitor               Yes
• Mode button     Yes
