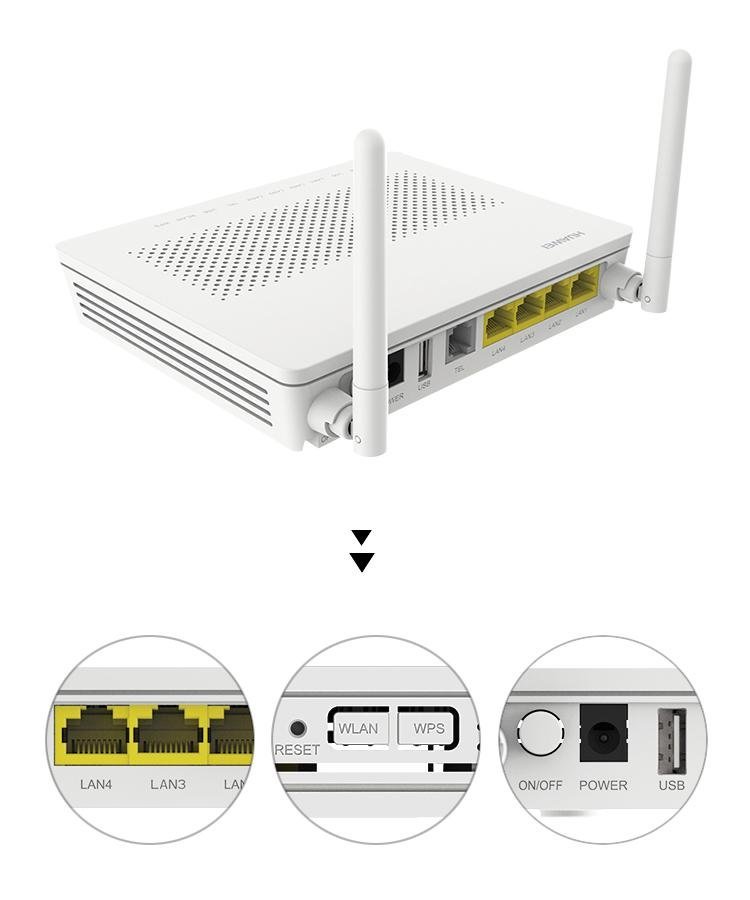

Huawei ONU XPON Router HG8546M
Original price was: KSh 4,000.00.KSh 3,500.00Current price is: KSh 3,500.00. Ex.VAT
Huawei ONU GPON/EPON HG8546M FTTH for (Fiber to Home/Office )
Huawei HG8546M FTTH is a home fibeGPON /ONU r optical network terminal (ONT) is an indoor optical network terminal in Huawei FTTx solution with one GE port, three FE ports, one POTS port, and one USB and WiFi 802.11 b/g/n.
Huawei Home /Office Fiber Router Overview
Huawei HG8546M FTTH is an Optical Terminal Unit with 1 GE+3 FE+1 POTS+1 USB+2.4G WiFi or 4 FE+1 POTS+1 USB+2.4G WiFi.
This is a high-end home gateway in the Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users.
It can support pure data, Data +Voice, Data+ Voice+ WIFI, and other service accessing types. HG8546M ONT supports standard OMCI, can provide up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate.
It can fully meet ISPs FTTBFTTHFTTO equipment needs The high-performance forwarding capability effectively guarantees the service experience of voice, data, and high-definition video
Huawei ONU GPON/EPON HG8546M FTTH Specs;
| Brand | Huawei |
| Model | HG8546M |
| Power supply | 12V,1.5A |
| Power consumption (full loaded) | ≤15W |
| Outline dimensions (mm) (W*D*H) | 240*160*35mm |
| Weight (in maximum configuration) | ≤0.5kg |
| WIFI | Antenna 2×2, 5dBi external antenna |
| EIRP Max 25dBm | |
| VoIP | REN Max 5REN |
| Connector 1x RJ11 | |
| Ringing 65V RMS ringing voltage | |
| USB | Max 1A for each port |
| Environmental requirements | Working temperature：0ºC~50ºC |
| Storage temperature：-40ºC~70ºC | |
| Working humidity：5%~90% Storage temperature：5%~95% no condensing | |
| Ethernet | Standard;IEEE802.3 IEEE802.3au IEEE802.3x |
| Interface;1x 10/100/1000BASE-T+310/100Base-T RJ45
Auto negotiation Auto MDI/MDIX |
