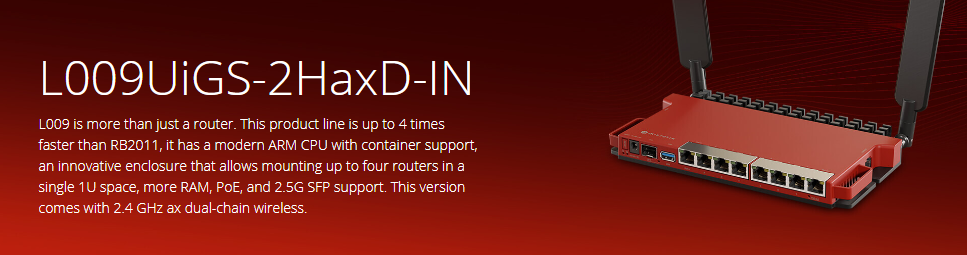

L009UiGS-2HaxD-IN – MikroTik Wireless router Gigabit Ethernet Single-band (2.4 GHz) Red

The MikroTik L009UiGS-2HaxD-IN is a compact, powerful wireless router designed to provide excellent connectivity with advanced features for home or small business networks.

Specifications

• Product code      L009UiGS-2HaxD-IN
• Architecture       ARM
• CPU       IPQ-5018
• CPU core count 2
• CPU nominal frequency 800 MHz
• Switch chip model            88E6190
• RouterOS license               5
• Operating System            RouterOS v7
• Size of RAM        512 MB
• Storage size         128 MB
• Storage type       NAND
• MTBF    Approximately 200’000 hours at 25C
• Tested ambient temperature       -40°C to 70°C

Wireless capabilities

• Wireless 2.4 GHz Max data rate  574 Mbit/s
• Wireless 2.4 GHz number of chains           2
• Wireless 2.4 GHz standards         802.11b/g/n/ax
• Antenna gain dBi for 2.4 GHz       4
• Wireless 2.4 GHz chip model       IPQ-5018
• Wireless 2.4 GHz generation        Wi-Fi 6
• WiFi speed          AX600

Ethernet

• 10/100/1000 Ethernet ports       8
• Number of 1G Ethernet ports with PoE-out           1

Fiber

• SFP ports             1 (2.5G supported)

Peripherals

• Serial console port           RJ45
• Number of USB ports      1
• USB Power Reset              Yes
• USB slot type     USB 3.0 type A
• Max USB current (A)       1.5

Powering

• Number of DC inputs      2 (DC jack, PoE-IN)
• DC jack input Voltage      24-56 V
• Max power consumption              47 W
• Max power consumption without attachments   14 W
• Cooling type       Passive
• PoE in    802.3af/at
• PoE in input Voltage        24-56 V

PoE-out

• PoE-out ports     Ether8
• PoE out Passive PoE
• Max out per port output (input 18-30 V) 1 A
• Max out per port output (input 30-57 V) 450 mA
• Max total out (A)              1.0 A

Wireless specifications
