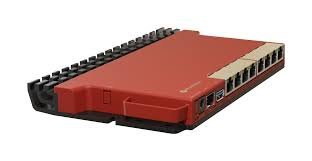

L009UiGS-RM – MikroTik wired router 2.5 Gigabit Ethernet, Gigabit Ethernet Red

The MikroTik L009UiGS-RM is a versatile and powerful wired router designed for users who need high-speed connectivity and robust network management in a compact form factor.

This L009UiGS-RM is particularly well-suited for small to medium-sized networks, offering reliable and efficient wired communication.

Specifications

• Product code      L009UiGS-RM
• Architecture       ARM
• CPU       IPQ-5018
• CPU core count 2
• CPU nominal frequency 800 MHz
• Switch chip model            88E6190
• RouterOS license               5
• Operating System            RouterOS v7
• Size of RAM        512 MB
• Storage size         128 MB
• Storage type       NAND
• MTBF    Approximately 200’000 hours at 25C
• Tested ambient temperature       -40°C to 70°C

Powering

• Number of DC inputs      2 (DC jack, PoE-IN)
• DC jack input Voltage      24-56 V
• Max power consumption              40 W
• Max power consumption without attachments   8 W
• Cooling type       Passive
• PoE in    802.3af/at
• PoE in input Voltage        24-56 V

PoE-out

• PoE-out ports     Ether8
• PoE out Passive PoE
• Max out per port output (input 18-30 V) 1 A
• Max out per port output (input 30-57 V) 450 mA
• Max total out (A)              1 A
• Ethernet
• 10/100/1000 Ethernet ports       8
• Number of 1G Ethernet ports with PoE-out           1

Fiber

• SFP ports             1 (2.5G supported)

Peripherals

• Serial console port           RJ45
• Number of USB ports      1
• USB Power Reset              Yes
• USB slot type     USB 3.0 type A
• Max USB current (A)       1.5
• Mode button     Yes
