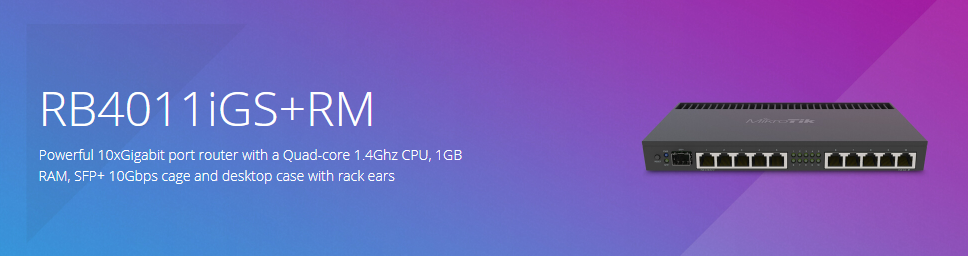

RB4011iGS+RM – MikroTik RB4011 Ethernet 10-Port Gigabit Router

The MikroTik RB4011iGS+RM is a high-performance, cost-effective router designed for small to medium-sized businesses and advanced home networks.

The router offers excellent performance with powerful processing capabilities and robust hardware features for a wide variety of networking tasks.

The RB4011iGS+RM is ideal for anyone looking for a versatile, high-performance router with powerful networking capabilities and advanced management features, perfect for demanding environments like small businesses or homes with multiple connected devices.

Specifications

• Product code      RB4011iGS+RM
• Architecture       ARM 32bit
• CPU       AL21400
• CPU core count 4
• CPU nominal frequency auto (533 – 1900) MHz
• Switch chip model            RTL8367SB
• Dimensions         228 x 120 x 30 mm
• RouterOS license               5
• Operating System            RouterOS v7
• Size of RAM        1 GB
• Storage size         512 MB
• Storage type       NAND
• MTBF    Approximately 200’000 hours at 25C
• Tested ambient temperature       -40°C to 70°C
• IPsec hardware acceleration         Yes

Powering

• Number of DC inputs      2 (DC jack, PoE-IN)
• DC jack input Voltage      12-57 V
• Max power consumption              33 W
• Max power consumption without attachments   18 W
• Cooling type       Passive
• PoE in    Passive PoE
• PoE in input Voltage        18-57 V

PoE-out

• PoE-out ports     Ether10
• PoE out Passive PoE up to 57V
• Max out per port output (input 18-30 V) 600 mA
• Max out per port output (input 30-57 V) 420 mA
• Max total out (A)              600 mA

Ethernet

• 10/100/1000 Ethernet ports       10

Fiber

• SFP+ ports           1

Peripherals

• Serial console port           RJ45
• PCB temperature monitor             Yes
• Voltage Monitor               Yes
