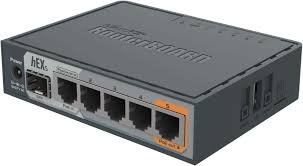

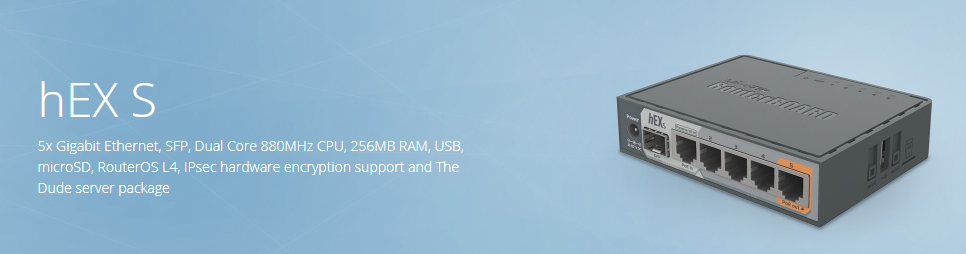

RB760iGS – Mikrotik hEX S 5x Gigabit Ethernet SFP Dual Core 880MHz CPU

The hEX S RB760iGS – Mikrotik 5x Gigabit Ethernet SFP is a five port Gigabit Ethernet router for locations where wireless connectivity is not required.

The hEX S RB760iGS is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports.

The device has a USB 2.0, PoE output for Ethernet port 5 and a 1.25Gbit/s SFP cage. The port 5 can power other passive PoE capable devices with the same voltage as applied to the unit

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

Specifications

• Product code      RB760iGS
• Architecture       MMIPS
• CPU       MT7621A
• CPU core count 2
• CPU nominal frequency 880 MHz
• CPU Threads count          4
• Switch chip model            MT7621A
• Dimensions         113 x 89 x 28 mm
• RouterOS license               4
• Operating System            RouterOS
• Size of RAM        256 MB
• Storage size         16 MB
• Storage type       FLASH
• MTBF    Approximately 100’000 hours at 25C
• Tested ambient temperature       -40°C to 70°C
• IPsec hardware acceleration         Yes

Powering

• Number of DC inputs      2 (DC jack, PoE-IN)
• DC jack input Voltage      12-57 V
• Max power consumption              24 W
• Max power consumption without attachments   6 W
• Cooling type       Passive
• PoE in    802.3af/at
• PoE in input Voltage        12-57 V

PoE-out

• PoE-out ports     Ether5
• PoE out Passive PoE up to 57V
• Max out per port output (input 18-30 V) 500 mA
• Max out per port output (input 30-57 V) 500 mA
• Max total out (A)              500 mA

Ethernet

• 10/100/1000 Ethernet ports       5

Fiber

• SFP ports             1

Peripherals

• Memory card type           microSD
• Memory Cards   1
• Number of USB ports      1
• USB Power Reset              Yes
• USB slot type     USB type A
• Max USB current (A)       1
• PCB temperature monitor             Yes
• Voltage Monitor               Yes
• Mode button     Yes
• Beeper  Yes
