RB941-2nD-TC – Mikrotik hAP Lite 32MB 4 X 10/100 2.4Ghz

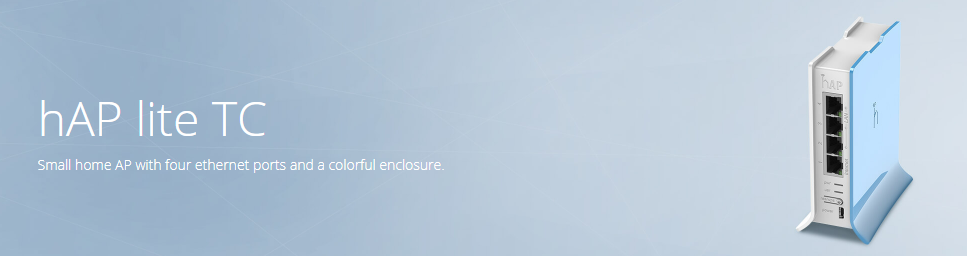

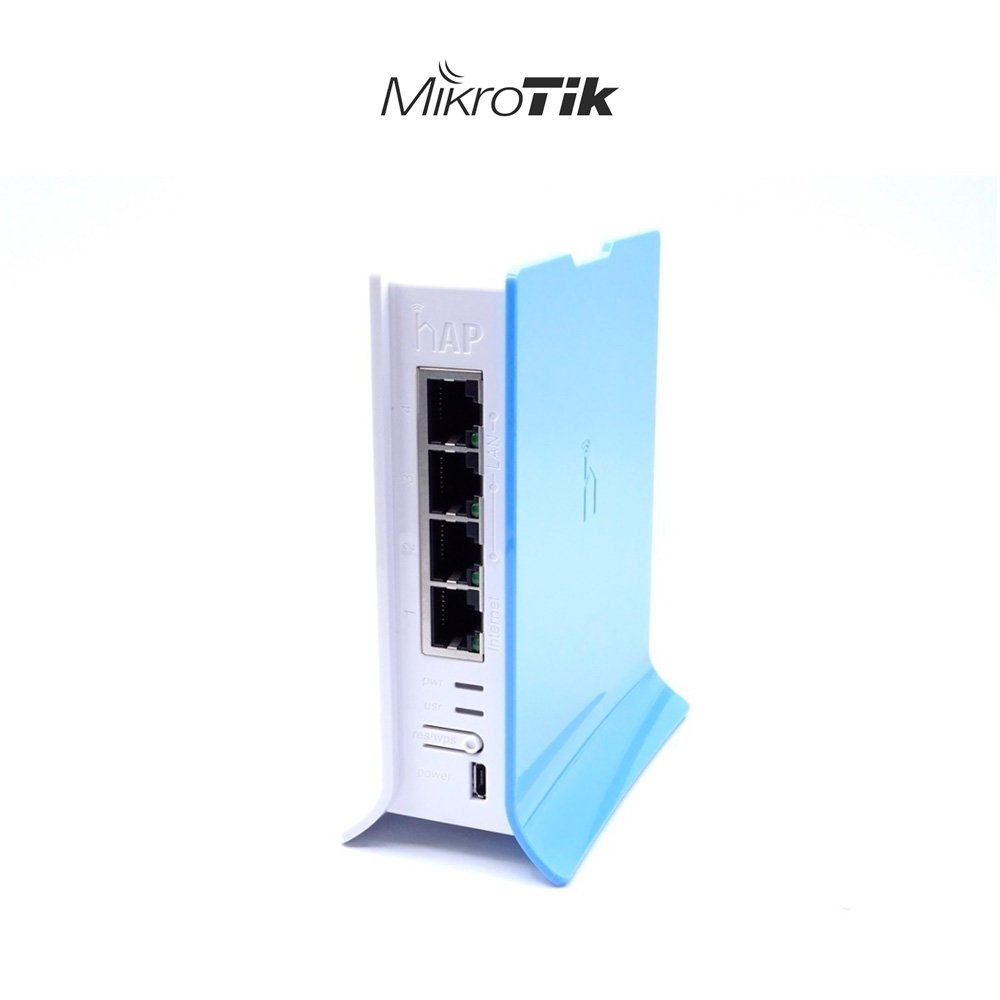

RB941-2nD-TC – Mikrotik hAP Lite 32MB 4 X 10/100 2.4Ghz home Access Point lite (hAP lite) is an ideal little device for your apartment, house or office.

The RB941-2nD-TC hAP supports button triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.

The device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others.

The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license. USB power supply is included.

Specifications

• Product code      RB941-2nD-TC
• Architecture       SMIPS
• CPU       QCA9533
• CPU core count 1
• CPU nominal frequency 650 MHz
• Switch chip model            QCA9533-BL3A
• RouterOS license               4
• Operating System            RouterOS
• Size of RAM        32 MB
• Storage size         16 MB
• Storage type       FLASH
• MTBF    Approximately 100’000 hours at 25C
• Tested ambient temperature       -20°C to 70°C

Wireless capabilities

• Wireless 2.4 GHz Max data rate  300 Mbit/s
• Wireless 2.4 GHz number of chains           2
• Wireless 2.4 GHz standards         802.11b/g/n
• Antenna gain dBi for 2.4 GHz       1.5
• Wireless 2.4 GHz chip model       QCA9533
• Wireless 2.4 GHz generation        Wi-Fi 4

Ethernet

• 10/100 Ethernet ports   4

Powering

• MicroUSB input Voltage 5 V
• Number of DC inputs      1 (MicroUSB)
• Max power consumption              3.5 W
• Cooling type       Passive

Wireless specifications
