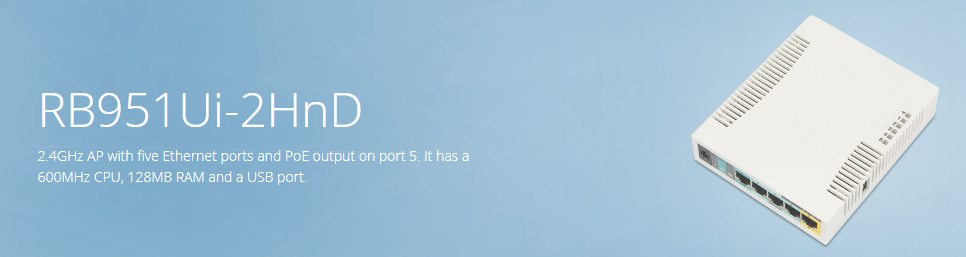

RB951Ui-2HnD – Mikrotik 2.4GHz AP 5 Ethernet ports

The RB951Ui-2HnD – Mikrotik 2.4GHz AP 5 Ethernet ports is a wireless SOHO AP with a new generation Atheros CPU and more processing power.

The AP has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.

RB951Ui-2HnD has a 600MHz CPU,128MB of RAM and PoE output function for port 5 – it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Specifications

• Product code      RB951Ui-2HnD
• Architecture       MIPSBE
• CPU       AR9344
• CPU core count 1
• CPU nominal frequency 600 MHz
• Dimensions         113x138x29mm
• RouterOS license               4
• Operating System            RouterOS
• Size of RAM        128 MB
• Storage size         128 MB
• Storage type       NAND
• MTBF    Approximately 100’000 hours at 25C
• Tested ambient temperature       -20C +60C

Wireless capabilities

• Wireless 2.4 GHz Max data rate  300 Mbit/s
• Wireless 2.4 GHz number of chains           2
• Wireless 2.4 GHz standards         802.11b/g/n
• Antenna gain dBi for 2.4 GHz       2.5
• Wireless 2.4 GHz chip model       AR9344
• Wireless 2.4 GHz generation        Wi-Fi 4

Ethernet

• 10/100 Ethernet ports   5

Peripherals

• Number of USB ports      1
• USB Power Reset              Yes
• USB slot type     USB type A
• Max USB current (A)       1

Powering

• Number of DC inputs      2 (PoE-IN, DC jack)
• DC jack input Voltage      8-30 V
• Max power consumption              24 W
• Max power consumption without attachments   7 W
• Cooling type       Passive
• PoE in    Passive PoE
• PoE in input Voltage        8-30 V

PoE-out

• PoE-out ports     Ether5
• PoE out Passive PoE
• Max out per port output (input 18-30 V) 500 mA
• Max total out (A)              500 mA

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	30	-96
54MBit/s	25	-80
MCS0	30	-96
MCS7	23	-78
