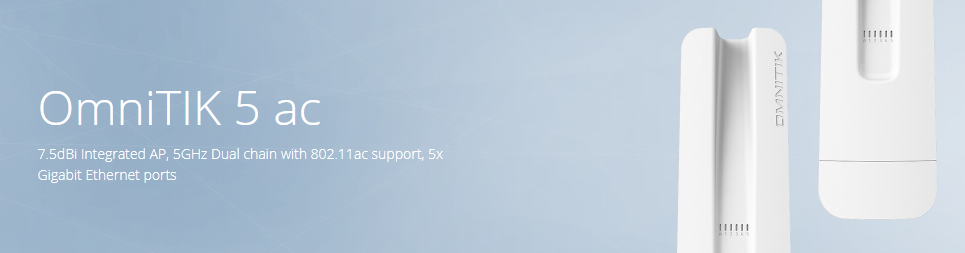

RBOmniTikG-5HacD Mikrotik OmniTIK 5 ac 7.5dBi 5GHz Dual chain 5x Gigabit Ethernet ports

The OmniTIK 5 ac features five Gigabit Ethernet ports and support for 802.11ac.

It is equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.

The OmniTIK 5 ac supports 5150MHz-5875MHz range.

Specifications

• Product code     RBOmniTikG-5HacD
• Architecture       MIPSBE
• CPU       QCA9557
• CPU core count 1
• CPU nominal frequency 720 MHz
• Switch chip model           QCA8337
• Dimensions        416 x 129 x 58 mm
• RouterOS license              4
• Operating System            RouterOS
• Size of RAM        128 MB
• Storage size        16 MB
• Storage type      FLASH
• MTBF    Approximately 200’000 hours at 25C
• Tested ambient temperature     -40°C to 70°C

Powering

• Number of DC inputs      1 (PoE-IN)
• Max power consumption              14 W
• Cooling type       Passive
• PoE in    Passive PoE
• PoE in input Voltage       12-57 V

Wireless specifications

• Wireless 5 GHz Max data rate     867 Mbit/s
• Wireless 5 GHz number of chains              2
• Wireless 5 GHz standards             802.11a/n/ac
• Antenna gain dBi for 5 GHz          7.5
• Wireless 5 GHz chip model           QCA9892
• Wireless 5 GHz generation           Wi-Fi 5

Ethernet

• 10/100/1000 Ethernet ports       5

Peripherals

• Number of USB ports      1
• USB Power Reset             Yes
• USB slot type     USB type A
• Max USB current (A)       1
