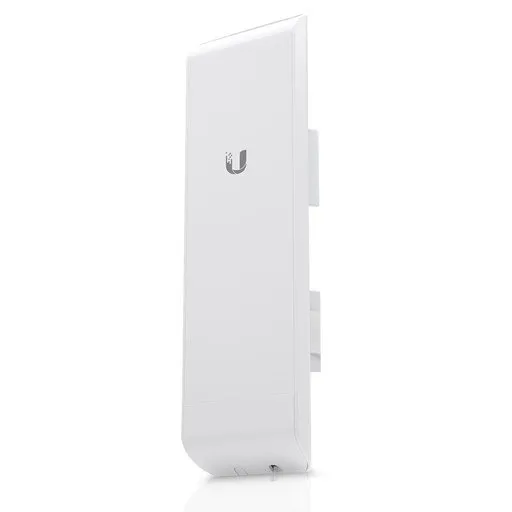

The Ubiquiti NanoStation M5 (NSM5) is a powerful outdoor wireless access point designed for long-range point-to-point (PtP) and point-to-multipoint (PtMP) applications.
With its rugged construction and advanced features, it is ideal for creating reliable connections in various environments, making it perfect for both residential and commercial deployments.
Specifications
- Model: NSM5
- Dimensions: 294 x 31 x 80 mm (11.6 x 1.3 x 3.2″)
- Weight: 400 g (14.1 oz)
- Enclosure Material: Outdoor UV-stabilized plastic
- Mounting: Pole-mount (Kit included)
Hardware
- Networking Interface: (2) 10/100 MbE RJ45 ports
- Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
- Power Supply: 24V, 0.5A PoE adapter (Included)
- Supported Voltage Range: 22–27V DC
- Max. Power Consumption: 8W
- Ambient Operating Temperature: -30 to 75 °C (-22 to 167 °F)
- Operating Humidity: 5 to 95% noncondensing
- Shock & Vibration: ETSI300-019-1.4
System
- Frequency: 5 GHz
- Operating Frequency:
- Worldwide: 5170-5875 MHz
- USA: 5725-5850 MHz
- USA DFS: 5250-5850 MHz
- Gain: 14.6-16.1 dBi
- Cross-Pol Isolation: 22 dB Min.
- Max. VSWR: 1.6:1
- Beamwidth: 43° (H-pol) / 41° (V-pol) / 15° (Elevation)
- Polarization: Dual Linear
Common FAQs
- What is the NanoStation M5 used for?
The NanoStation M5 is primarily used for establishing long-range wireless links in outdoor environments. It is suitable for connecting remote locations, expanding networks, and providing internet access in areas where traditional cabling is not feasible.
- Can a NanoStation M5 be used for WiFi?
Yes, the NanoStation M5 can be used to provide WiFi coverage. It can function as a wireless access point, allowing devices to connect to the network wirelessly. It is ideal for creating outdoor WiFi networks in locations such as parks, campuses, and large outdoor venues.
- How far can NanoStation M5 wirelessly reach?
The NanoStation M5 can achieve point-to-point connections of up to 15 km (approximately 9 miles) under optimal conditions. Actual range may vary based on environmental factors such as terrain, obstacles, and interference.
- What is the range of NanoStation NSM5?
The effective range of the NanoStation NSM5 is similar to that of the NanoStation M5, typically reaching distances of up to 15 km (9 miles) in point-to-point setups. In a point-to-multipoint configuration, the coverage area will depend on the number of clients and the deployment environment.
