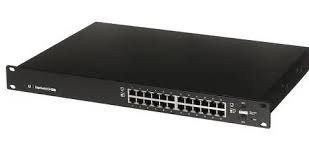

Ubiquiti EdgeSwitch 24 Port 250W Gigabit Switch – ES 24-250W

The Ubiquiti EdgeSwitch 24 Port 250W Gigabit Switch is designed to deliver high performance and reliability for enterprise networking.

With its robust switching capabilities and Power over Ethernet (PoE) support, this switch is ideal for powering a variety of devices, including IP cameras, access points, and VoIP phones.

Specifications

• Management Interface:
  • (1) RJ45 serial port
  • Ethernet In/Out-Band
• Networking Interface:
  • (24) GbE RJ45 ports
  • (2) 1G SFP ports
• PoE Interface:
  • (24) PoE/PoE+ 2-pair (Pins 1, 2+; 3, 6-)
  • (24) 24V DC passive PoE 2-pair (Pins 4, 5+; 7, 😎
• Total Non-Blocking Throughput: 26 Gbps
• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.69 Mpps
• Power Method:
  • 100-240V AC, universal input, 50/60 Hz
• Power Supply: AC/DC, internal, 250W
• Max Power Consumption: 30W (excludes PoE output)
• Total PoE Available: 250W
• Max PoE Wattage per Port by PSE:
  • PoE+: 34.2W
  • Passive PoE: 17W
• Voltage Range PoE Mode:
  • PoE+: 50–57V
  • Passive PoE: 20–27V
• ESD/EMP Protection: Air/contact: ±24 kV
• LEDs:
  • Ethernet ports: PoE, speed/link/activity
  • SFP ports: speed/link/activity
• Button: Factory reset
• Rackmount: Yes, 1U
• Shock and Vibration: ETSI300-019-1.4 Standard

Common FAQs

• How much power does EdgeSwitch 24 use?

The Ubiquiti EdgeSwitch 24 has a maximum power consumption of 30W for its own operation, excluding PoE output. It can deliver up to 250W for powering connected devices.

• What is the default IP for Ubiquiti EdgeSwitch 24 250W?

The default IP address for the EdgeSwitch 24 is typically set to 192.168.1.1, which allows access to the management interface via a web browser.

• How does a 24 port gigabit switch work?

A 24-port gigabit switch connects multiple devices within a local area network (LAN) by using Ethernet cables. It allows devices to communicate with one another, shares network resources, and manages data traffic to ensure efficient performance. It can also provide PoE to power devices like cameras and access points directly through the Ethernet cable.

• How much power does a 24 port switch use?

The power consumption of a 24-port switch varies by model. The EdgeSwitch 24 specifically consumes a maximum of 30W for its own operations, not including the power it provides to connected devices through PoE.
