Ubiquiti UniFi 48 Port PoE Pro Switch – USW-Pro-48-POE
KSh 185,000.00 Original price was: KSh 185,000.00.KSh 183,000.00Current price is: KSh 183,000.00. Ex.VAT

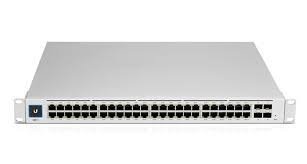

Ubiquiti UniFi 48 Port PoE Pro Switch – USW-Pro-48-POE
The Ubiquiti UniFi 48 Port PoE Pro Switch is a high-performance networking solution designed for enterprise environments. It offers advanced management features, a robust PoE capability, and a versatile design suitable for various applications.
With its enhanced throughput and power delivery options, this switch is ideal for powering multiple devices like access points, security cameras, and VoIP phones.
Specifications
- Management Interface: Ethernet In-Band
- Networking Interface:
- (48) GbE RJ45 ports
- (4) 1/10G SFP+ ports
- PoE Interface:
- (40) PoE/PoE+ (Pins 1, 2+; 3, 6-)
- (8) 60W PoE++ (Pins 1, 2+; 3, 6- / Pair A 1, 2+; 3, 6-; Pair B 4, 5+; 7, 😎
- Total Non-Blocking Throughput: 88 Gbps
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.944 Mpps
- Power Method:
- (1) Universal input, 100—240V AC, 50/60 Hz
- (1) USP-RPS DC input, 52V DC, 11.54A; 11.5V DC, 5.22A
- Power Supply: AC/DC, internal, 660W
- Supported Voltage Range: 100—240V AC
- Max Power Consumption: 60W (excluding PoE output)
- Total Available PoE: 600W
- Max PoE Wattage per Port by PSE:
- PoE+: 32W
- PoE++: 64W
- Voltage Range PoE Mode:
- PoE: 44—57V
- PoE+: 50—57V
- ESD/EMP Protection: Air: ± 16kV, contact: ± 12kV
- LCM Display: (1) 1.3″ touchscreen
- Button: Factory reset
- Shock and Vibration: ETSI300-019-1.4 Standard
- Ambient Operating Temperature: -5 to 40°C (23 to 104°F)
- Ambient Operating Humidity: 10 to 90% non-condensing
- Certifications: CE, FCC, IC
Switching Features
- Layer 2 Features:
- IGMP snooping
- STP/RSTP with priorities and port-level disable
- Port isolation
- Storm control
- Voice VLAN
- Port mirroring
- LACP port aggregation
- Multicast/broadcast rate limiting
- MAC address blocking
- Flow control
- 802.1X control
- Jumbo frames
- Proprietary loop protection
- DHCP snooping/guarding
- Egress rate limit
- LLDP-MED
- Port restricted by MAC
- Device isolation with ACLs
- Layer 3 Features:
- DHCP for locally-managed networks
- DHCP relay
- Inter-VLAN routing between networks on the same switch
- Static routing between local networks
- Network isolation with ACLs
LEDs
- System: Status
- Ethernet: PoE
- Speed/Link/Activity:
- SFP+: Link/Activity
- RPS: Status
Common FAQs
- How fast is the USW Pro 48 PoE?
The USW-Pro-48-POE features a total non-blocking throughput of 88 Gbps and a switching capacity of 176 Gbps, ensuring fast and efficient data transfer for connected devices.
- How many watts does a Ubiquiti switch use?
The Ubiquiti UniFi 48 Port PoE Pro Switch has a maximum power consumption of 60W for its own operations (excluding PoE output), while providing up to 600W for PoE devices.
- What is the default IP of Ubiquiti 48-port PoE switch?
The default IP address for the Ubiquiti UniFi 48-Port PoE Pro Switch is typically set to 192.168.1.20, allowing users to access the management interface via a web browser.
- How much power does UniFi PoE use?
UniFi PoE standards provide different power levels:
- PoE: up to 15.4W
- PoE+: up to 30W
- PoE++: up to 60W per port under specific conditions.
