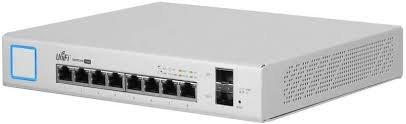

Ubiquiti UniFi US-8-150W Switch

The Ubiquiti UniFi Switch 8-150W – US-8-150W is a compact and powerful managed switch designed to support small to medium-sized networks.

It offers Power over Ethernet (PoE) capabilities and a range of connectivity options, making it ideal for powering devices like IP cameras and access points directly through Ethernet cables.

Specifications

• Management Interface:
  • Ethernet In-Band
• Networking Interface:
  • (8) GbE RJ45 ports
  • (2) 1G SFP ports
• PoE Interface:
  • (8) PoE/PoE+ (Pins +1, 2; -3, 6)
  • 24V DC passive PoE (Pins +4, 5; -7, 8)
• Total Non-Blocking Throughput: 10 Gbps
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 Mpps
• Power Method:
  • Universal input, 100—240V AC, 50/60 Hz
• Power Supply: AC/DC, internal, 150W
• Max Power Consumption:
  • 20W (excluding PoE output)
  • 150W (including PoE output)
• Total Available PoE: 130W
• Max PoE Wattage per Port by PSE:
  • PoE: 17W
  • PoE+: 34W
• Voltage Range PoE Mode:
  • 24V passive PoE: 20–27V
  • PoE+: 50–57V
• ESD/EMP Protection: Air/contact: ± 24kV
• Button: Factory reset

LEDs

• Indicators for:
  • Ethernet
  • PoE
  • Speed/link/activity

Common FAQs

• What is a UniFi Switch 8 used for?

The US-8-150W is designed to connect multiple devices in a network, providing both data connectivity and power to PoE-enabled devices like access points, IP cameras, and VoIP phones. Its compact size makes it suitable for installations where space is limited.

• What is the operating temperature of the UniFi US-8-150W?

The operating temperature range for the US-8-150W is -5 to 45°C (23 to 113°F), allowing it to function effectively in various environments.

• What is the default IP address of the UniFi Switch 8-150W?

The default IP address for the UniFi Switch 8-150W is typically 192.168.1.20. This can be configured through the UniFi Controller software.

• What is Ubiquiti network and how does it work?

Ubiquiti networks utilize a range of networking hardware, including switches, routers, and wireless access points, designed for scalability and ease of management. The UniFi Controller software enables centralized management of devices, allowing users to configure settings, monitor performance, and manage security across their network infrastructure.
